    Metal Shell Handheld Surface Roughness Tester For Flat Surface

    Metal Shell Handheld Surface Roughness Tester For Flat Surface


    Surface Roughness Tester Leeb452


    Function & Feature:

    • Metal shell, stronger and anti-electromagnetic interference
    • Adapts high speed DSP processor to get fast measurement
    • With OLED dot matrix indicator
    • Application for measuring flat surface, conical surface and also groove larger than 80*30mm.
    • With ISO/ DIN/ CE/ JIS/ FCC standards.
    • Power supply: 3.7V rechargeable Li-ion battery.

    Technical Specification:


    ModelLeeb452
    Roughness parameterRa,Rz,Rq,Rt
    Measuring rangeRa:0.05-10.0μm Rz:0.1-50μm
    Resolution0.01μm
    Cut-off lengths0.25mm / 0.8mm / 2.5mm
    Evaluation length1.25mm / 4mm / 5mm
    Tracing length6mm
    StandardISO,DIN,ANSI,JIS
    Error of indication≤±10%
    Variation of indication<6%
    SensorPiezocrystal
    Arc Radius & Angle of SensorRadius of sensor stylus:10.0±2.5μm Angle:90°
    Force & Change rateSensor stylus forc:≤0.016N change rate:≤800N/m
    Stylus force≤0.5N
    Power supplyRechargeable 3.7V Lithium-Ion battery
    Operating temperature0 ºC -40 ºC
    Weight200g
    Dimensions106×70×24mm

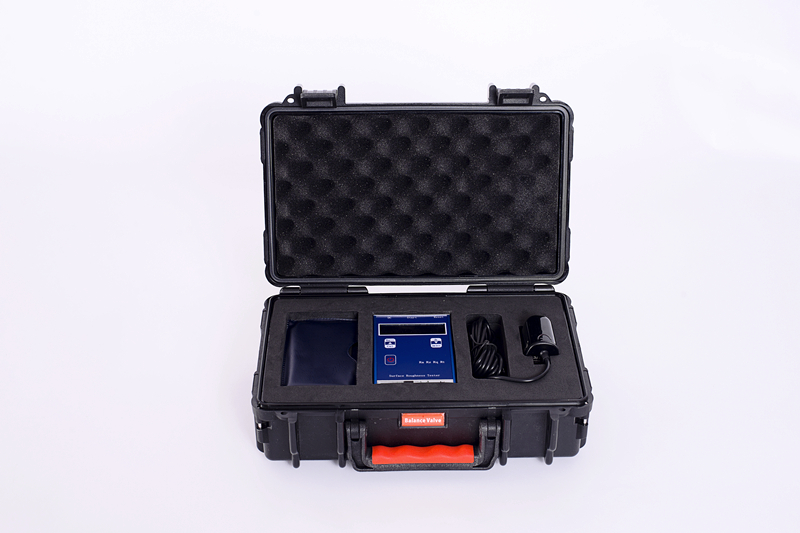

    Standard configurationMain Unit,Calibration block, Power charger, Supporting platform Manual,Certificate, Warranty card
    Standard configurationMain Unit,Calibration block, Power charger, Supporting platform Manual,Certificate, Warranty card
