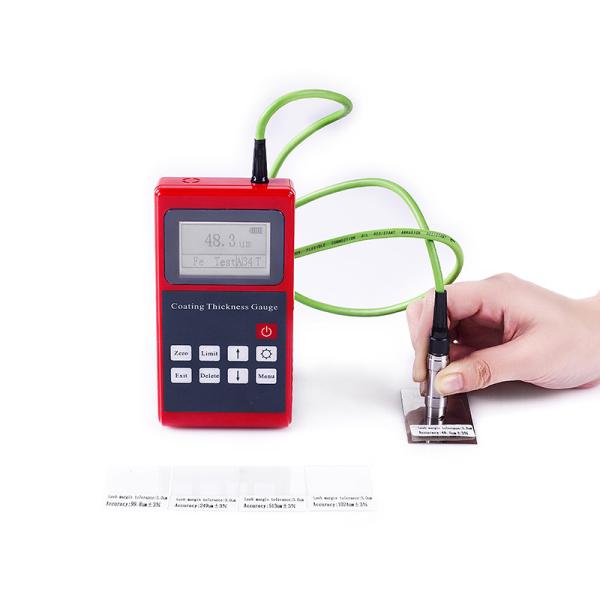

Leeb211 NFe Probeand Coating Thickness Tester Switch Off
Automatically
High Precision NFe Probeand Switch Off Automatically Or Manually
Coating Thickness Gauge With Plastic Shell
Functions & Features
Leeb211 is our competitive item with high quality settled NFe
probes.
It has two measuring methods(continuous methods and single methods)
and wwo working mode(direct mode and batch mode). User can set the
limit according to the different request when using.
Besides, this instruments can be switched off automatically or
manually.
Technical Parameters
| Technical Parameters |
| Model No. | Leeb211 |
| Measuring principle | NFe |
| Measuring range (µm) | 0~1250μm |
| Probe | Settled |
| Shell | Plastic |
| Accuracy | ±(1~3%H+1) μm; H refers to the thickness of testing piece |
| Minimum resolution (µm) | 0.1μm |
| Min curvature of the min area (mm) | Convex1.5 Concave9 |
| Diameter of the min area (mm) | Φ7 |
| Critical thickness of substrate (mm) | 0.5 |
| Memory | 200 groups measured data |
| Dimensions | 115*70*30mm |
| Power supply | AAA Alkaline battery |
| Standard Configuration |
Main Machine, 1 probe & substrate,5 calibration specimens (48.5m,99.8m,249m,513m,1024m) |
| Optional Accessories | Probes,Specimens |
Measuring Principle
This instrument adopts eddy current thickness methods(NFe Probe):
Measuring Non-conductive coatings on Non-magnetic basis metals
(such as enamel, plastic, rubber, paint coatings on copper,
aluminum, zinc, tin substrates).
By using high frequency alternating current in the coil produces an
electromagnetic field,when the probe contact with cover,Metal
substrate eddy current is produced,and feedback to a coil in a
probe,Derived by measuring the size of the feedback effect of the
coating thickness.
MAINTENANCE
1, Environment Requirement
Strictly avoid collisions, heavy dust, humidity, strong magnetic
field, oil, etc.
2, Battery Replacement
2 AA batteries are installed in the tester.When
sign appears, please replace the batteries. 3, How to replace battery:
Open the cover of the battery compartment when the tester is off,
take out the empty batteries and fill in the new ones.
Date and time and measuring conditions need to be reset after
replacing the batteries.
4, If you do not show the error code and don't work properly, such
as:
a) Does not automatically power off
b) Can't measure;
c) Button doesn't work;
d) Measured values capricious.
Appear this kind of failure, when the user through the above method
is still can't rule out failure, the user, please do not dismantle
machine repair themselves.Fill in the warranty card, please deliver
instrument maintenance department, perform the warranty
regulations.
If the error can be simple to describe, sent out together, we will
thank you very much.
Five calibration specimens (48.5μm,99.8μm,249μm,513μm,1024μm)
