    Vickers Rockwell Brinell Hardness Tester Hardness Measuring Equipment

    Ask Lasest Price
    Brand Name : LEEB
    Model Number : LHB-3000
    Certification : CE, FCC, EAC, ISO Certification
    Price : Based on quantity
    Payment Terms : T/T, Paypal, L/C, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    Vickers Rockwell Brinell Hardness Tester Hardness Measuring Equipment

    Vickers Rockwell Brinell Hardness Tester Hardness Measuring Equipment

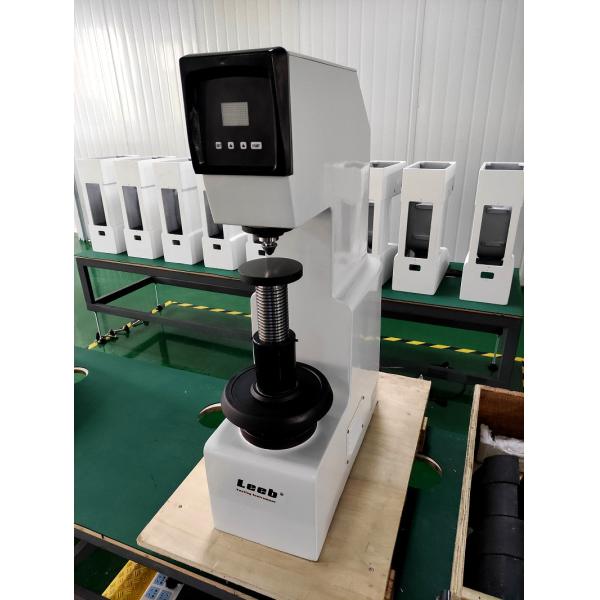

    Brinell Hardness Tester, Basic model

    Main Features:

    ● Electronic commutator switch is adopted, which has the characteristics of high precision, wide range of testing, automatic loading on test force,

    automatic holding time, automatic unloading.

    ● High precision microscope measurement system in readout

    ● Widely used in quality monitoring of the production spot, with strong adaptability to the working environment

    ● The accuracy is in accordance with GB / T 231.2, ISO 6506-2, USA ASTM E10.

    ● With Strong construction, good rigidity, durability, and efficient testing


    Application:


    Suitable for the precision testing of parallel plane, Stable and reliable for the curved surface testing.

    Test Ferrous metals, nonferrous metals and bearing alloy materials


    Technical Specifications:


    ModelLHB-3000

    Testing Force

    187.5kgf(1839N),250kgf(2452N),750kgf(7355N),1000kgf(8907N),3000kgf (29420N)
    Max Height of Specimen230mm
    Hardness testing Range8~650HBW
    Magnification of Microscope20X
    Carried StandardEN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2,JJG150
    Distance of Indenter to outer wall

    120mm

    Indication of Hardness ValueChecking Table
    Power supplyAC380/220
    Overall Dimension (mm)700*268*842mm
    Net WeightAbout 210kg

    Standard Accessories


    NameQuantityNameQuantity
    Measurement microscope(20X)1Diameter 2.5,5,10mm Hard Alloy Steel Ball IndenterEach 1
    Standard Blocks2Large, Medium, “V” shaped Testing TableEach 1
